All About The Mini Mega Balance Pedestal

November 25th, 2024

In the world of construction and landscaping, the importance of a reliable pedestal system cannot be overstated. It serves as the backbone for various outdoor surfaces, ensuring stability, drainage, and aesthetic appeal.

Among the myriad of options available, the Mini Mega Balance Pedestal stands out as an innovative solution designed to meet the evolving needs of contractors and builders.

This article delves into the features, benefits, and applications of the Mini Mega Balance Pedestal, exploring how it has been shaped by customer feedback and the commitment of Wallbarn to continuous improvement.

Understanding the Mini Mega Balance Pedestal

What is the Mini Mega Balance?

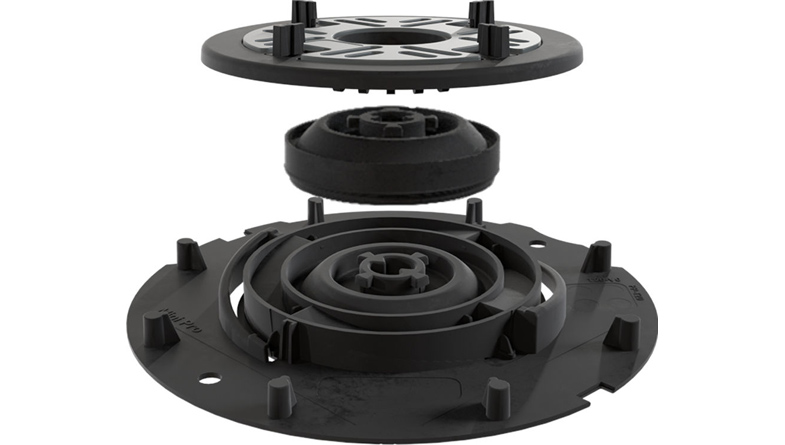

The Mini Mega Balance Pedestal is a further advance and development in the successful Meg Balance range of pedestals, bringing an even more versatile support system for outdoor paving , decking and terrace substructure applications. This product simplifies the installation process by offering a height range from 25mm to 75mm on one unit, which can accommodate various surface types and levels. With its robust construction and adjustable features, this pedestal is engineered to support significant weight while ensuring a flat and even surface.

One of the standout features of the Mini Mega Balance is the incorporation of ‘dome’ extenders. These come in two sizes: a full dome that adds 25mm of height and a half dome that adds 12.5mm. By combining these extenders with the adjustable base unit, contractors can achieve a total height range of 25mm to 75mm using a single product code. This level of flexibility addresses a common pain point for project managers an contractors who are fully aware that reality often does not match the drawings, and can sometimes struggle with precise height requirements at the point of installation.

Key Features

Height Adjustment: The Mini Mega Balance can be adjusted by hand easily using its telescopic stem, allowing for precise height adjustments without the need for cumbersome tools.
Retrospective Height Adjustment: By using the special key, installers can adjust the height of the pedestal after the tiles or slabs have been installed without having to lift them.
Self-Levelling Capability: This pedestal features a self-levelling head that adapts to uneven surfaces, ensuring that installations remain flat and stable. By dding the Grey Nut, the self-levelling mechanism can be “switched off” if required.
Durable Materials: Made from high-quality virgin polypropylene, the Mini Mega Balance is built to withstand extreme weather conditions and heavy loads, and has been independently tested to have a weight tolerance exceeding 3,000 kg.

Versatility in Applications

Another crucial aspect of the Mini Mega Balance concept is its compatibility with various surface materials. Whether the project calls for concrete paving slabs, porcelain tiles, natural stone, or decking materials, the Mini Mega Balance can accommodate them all. This versatility extends to its ability to work seamlessly with Wallbarn’s aluminium rail systems or timber / WPC joists, further expanding its applications in complex landscaping projects.

Compatibility with Various Surface Materials

One of the standout features of the Mini Mega Balance pedestal system is its exceptional versatility when it comes to supporting different surface materials. This compatibility makes it an ideal choice for a wide range of projects, from residential patios to commercial rooftop terraces. Let’s explore how the Mini Mega Balance works with various surface materials and the specific considerations for each.

Concrete Paving Slabs

Concrete paving slabs are a popular choice for many outdoor spaces due to their durability and cost-effectiveness. The Mini Mega Balance is well-suited to support these heavy materials:

The robust construction of the pedestals can easily handle the weight of concrete slabs and pedestrian traffic above.
The self-levelling head ensures a perfectly flat surface, even with slight variations (or “tolerances”) in slab thickness and any irregularities in sub floor surface (such as membrane laps) .
The ability to make fine height adjustments after the slabs have been installed by use of the “Key” which is inserted into the centre of the pedestal headpiece. This is particularly useful when working with heavy concrete slabs, as it allows for precise levelling and is a major health and safety improvement

Porcelain Tiles

Porcelain tiles are increasingly popular for outdoor applications due to their aesthetic appeal and low maintenance requirements:

The Mini Mega Balance’s precise height adjustment capabilities are ideal for the thin profiles of porcelain tiles. Lips between each tile are decreased by creating this smooth upper surface
The integrated acoustic shim set onto each headpiece are ideal for ceramic tile applications.
The lugs which are set into the headpieces create uniform and consistent gaps between tiles to ensure proper drainage and a luxurious finish.
The pedestals’ stability prevents tiles from rocking or shifting, which is crucial fortiled schemes. .

Natural Stone

Natural stone slabs, such as granite or limestone, can add a luxurious touch to any outdoor space:

The high weight tolerance of the Mini Mega Balance makes it suitable for even the heaviestnatural stone materials and the largest slab sizes.
The self-levelling head can compensate for the natural variations in thickness often found in stone slabs.
The integrated acoustic shim set onto each headpiece again deaden sound and vibration between he plastic and hard stone surface.
Retrospective height adjustment using the key without lifting the flag is particularly useful.
Large diameter baseplates diffuse and deflect the load across a larger surface area, reducing point loading.
The system’s durability ensures long-term support for these premium materials, protecting the investment in natural stone.

Timber Decking

For timber decking applications, the Mini Mega Balance offers several advantages:

The pedestals can be used to support joists, creating a stable substructure for the decking boards.
The joists are held between the positioning lugs, which house them securely but allow for structural movement and avoid pinch points.
The height adjustability allows for fast and efficient installation; as the joists become “spirit levels” in themselves, with pedestals laid at each end and the the intermediate pedestals inserted after the flat level has been achieved, to “bite” up the correct height.
The system facilitates good airflow beneath the deck, helping to prevent moisture-related issues and extend the life of the timber

Composite Decking

Composite decking materials are becoming increasingly popular due to their lower maintenance requirements:

The Mini Mega Balance can be used with specialised composite decking rails or joists. Simply lay the joists between the positioning lugs on the headpiece.
The precise height adjustment ensures a smooth, even surface – crucial for the clean lines often desired with composite decking.
The system’s stability helps maintain the integrity of the composite boards, preventing warping or separation over time.
The suspended system acts to aerate the decking via the air gap, again extending the life of the WPC

Aluminium Rail Substructure Systems

For projects requiring non-combustible materials or extra durability:

The Mini Mega Balance has been specially designed to connect to Wallbarn’s aluminium decking systems.
Lugs on headpiece are designed to click around the ledged edge profiles of the 60mm wide aluminium rails to create a seamless substructure.
The pedestals provide a stable base for the aluminium rails, ensuring a rigid and long-lasting structure.
The rails become “spirit levels” in themselves, with pedestals laid at each end and the intermediate pedestals inserted after the flat level has been achieved, to “bite” up the correct height.
The system’s adjustability allows for perfect alignment crucial for achieving a professional and weight bearing, solid finish.
These substructure systems are suitable for supporting both decking boards and tiles or slabs, achieving improved lateral stability and better performance.

The self-levelling head is another feature that sets the Mini Mega Balance apart. This component can automatically adjust to slopes of up to 5%, ensuring a perfectly level surface even on slightly uneven substrates. For situations where a fixed head is preferred, the system includes a simple locking mechanism, providing contractors with the flexibility to choose the most appropriate configuration for each specific application.

Advantages of the Mini Mega Balance Pedestal

Enhanced Drainage Solutions

One of the standout features of the Mini Mega Balance is its design that promotes effective drainage. The lugs on the headpiece create a 4mm gap between tiles or slabs, allowing water to flow freely between each tile / slab to prevent surface ponding . This feature is particularly crucial in outdoor settings where water accumulation can lead to structural damage over time.

Simplified Installation Process

The Mini Mega Balance has been designed with the contractor in mind. Its straightforward installation process saves time and reduces labour costs. The extended height range at these very low height thresholds mean there is less chance of miscalculating the height at order stage. The easy to adjust threaded stems allow changes to the height effectively and accurately, and self-levelling capabilities mean that even uneven surfaces can be managed with ease, eliminating the need for extensive groundwork.

Future-Proof Design

A significant advantage of the Mini Mega Balance is its adaptability. As construction sites often face unexpected changes, the ability to adjust pedestal heights post-installation by using the Key is invaluable. Added height “domes” also create efficient solutions where measurements are not fully known before installation. This flexibility ensures that contractors can meet client specifications without the need for additional products or delays.

Customer-Centric Development

Responding to Feedback

Wallbarn has a strong commitment to customer satisfaction, and the development of the Mini Mega Balance is a testament to this ethos. Feedback from contractors highlighted the need for a more versatile pedestal system that could handle varying height thresholds with ease. In response, Wallbarn consolidated multiple product codes into a single, multifunctional unit, streamlining the selection process for contractors.

Continuous Improvement Initiatives

Wallbarn continually seeks to improve its product offerings by engaging with customers and industry professionals. This feedback loop has led to enhancements in the Mini Mega Balance, including improved materials, less plastic and user-friendly features. The company’s dedication to innovation ensures that its products remain at the forefront of the industry.

Independently Tested for Superior Performance

The Mini Mega Balance Pedestal is manufactured to the highest standards, ensuring durability and reliability. Wallbarn’s rigorous testing processes guarantee that each product can withstand the demands of various applications, providing peace of mind for contractors and clients alike.

Wallbarn’s commitment to quality is evident in every detail, from the pedestals’ load-bearing capacity to their resistance to environmental factors and temperature fluctuations, ensuring longevity and stability over time.Technical Specifications

Height Range

The Mini Mega Balance offers an impressive height range, making it suitable for a variety of projects. The pedestal can be adjusted from:

25mm to 37.5mm (using the central stem)
37.5mm to 50mm (with the integrated Half Dome)
50mm to 75mm (using a Full Dome)

If height thresholds need to be raised unexpectedly, then additional Full Domes can be purchased to lift the pedestal higher still. This flexibility allows contractors to adapt to specific site requirements effectively.

Load Capacity

The Mini Mega Balance is built for heavy-duty applications, and has been independently tested , proving it has a weight tolerance exceeding 3,000 kg. This robust capacity ensures that it can support substantial loads, making it ideal for commercial and residential projects alike.

Material Composition

Constructed from high-quality virgin polypropylene, the Mini Mega Balance is resistant to extreme temperatures and environmental conditions. Its durability ensures a long lifespan, reducing the need for frequent replacements.

Installation Guidelines

Preparation Steps

Before installing the Mini Mega Balance, it’s essential to prepare the site adequately. This includes:

Site Assessment: Evaluate the area where the pedestals will be installed, checking for any uneven surfaces or obstacles.
Material Selection: Choose the appropriate surface materials (paving slabs, decking boards, etc.) based on the project requirements.
Planning Layout: Determine the layout of the pedestals, ensuring proper spacing for drainage and stability.

Step-by-Step Installation

Position the Pedestals: Place the Mini Mega Balance pedestals at the predetermined locations, ensuring they are level. The 200mm diameter baseplate diffuses and deflects the weight effectively.
Adjust Height: Use the telescopic stem to adjust the height of each pedestal as needed. For additional height, incorporate Half Domes or Domes.
Secure the Surface: Once the pedestals are in place, secure the paving or decking material on top, ensuring a snug fit.
Final Adjustments: After installation, make any necessary fine-tuning adjustments using the self-levelling feature or “The Key” for height corrections without lifting the tile / slab.

Maintenance Considerations

Routine Checks

To ensure the longevity and effectiveness of the Mini Mega Balance, regular maintenance checks are recommended. This includes:

Inspecting for any signs of wear or damage to the pedestals.
Checking the drainage gaps to ensure they remain clear and functional.
Adjusting pedestal heights using the Key as needed to accommodate settling or shifting.

Cleaning Procedures

Maintaining a clean surface is essential for both aesthetics and functionality. Regularly cleaning the paving or decking surface and the cavity beneath the slabs / decking will prevent build-up of debris and ensure optimal drainage.

Case Studies and Applications

Commercial Projects

The Mini Mega Balance has been successfully employed in various commercial projects, including:

Outdoor Cafés: Providing stable and visually appealing surfaces for dining areas, enhancing customer experience.
Roof Terraces: Creating functional outdoor spaces on rooftops, maximising usable area in urban environments.

Residential Installations

Homeowners have also benefited from the Mini Mega Balance, with applications including:

Patios: Offering a durable and attractive surface for outdoor living spaces.
Garden Walkways: Ensuring stable paths that can withstand heavy foot traffic and weather conditions.

Conclusion

The Mini Mega Balance Pedestal represents a significant advancement in outdoor support systems, offering unparalleled simplicity, versatility, durability, and ease of installation. Wallbarn’s commitment to listening to customer feedback and continuously improving their products has resulted in a pedestal that meets the needs of contractors and specifiers alike. With its robust design and innovative features, the Mini Mega Balance is poised to become an essential tool for any construction or landscaping project.

Final Thoughts

As the construction industry evolves, so too must the tools and systems we use. The Mini Mega Balance Pedestal exemplifies the future of outdoor support solutions, marrying functionality with user-centric design. Whether you’re a specifier seeking budget consistency, a contractor looking for efficiency or a homeowner seeking quality, this pedestal system is an investment in lasting performance and aesthetic appeal.
