    CAD / BIM Pedestals

    self-levelling

    ‘Balance’

    CAD / BIM

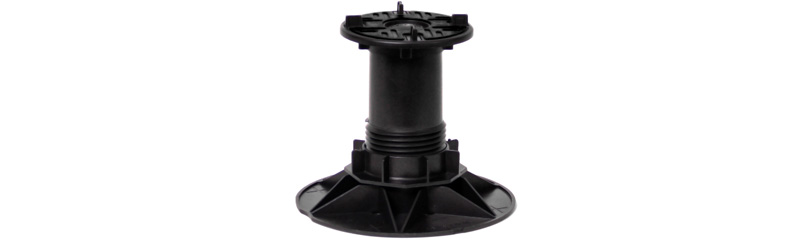

    Our BALANCE self-levelling pedestals are specially designed to accommodate differences in the deck surface below the pedestal.

    Specification

    NBS Source

    BIM Library

    Balance Self Levelling Pedestals CAD Drawings

    • BALANCE Head
    • 25-50mm BALANCE adjustable pedestal
    • 47-62mm BALANCE adjustable pedestal
    • 62-82mm BALANCE adjustable pedestal
    • 77-112mm BALANCE adjustable pedestal
    • 107-142mm BALANCE adjustable pedestal
    • 137-172mm BALANCE adjustable pedestal
    • 167-202mm BALANCE adjustable pedestal
    • 197-232mm BALANCE adjustable pedestal
    • 222-257mm BALANCE adjustable pedestal
    • 252-287mm BALANCE adjustable pedestal
    • 282-317mm BALANCE adjustable pedestal
    • 312-347mm BALANCE adjustable pedestal
    • 342-377mm BALANCE adjustable pedestal

    Balance Extra Self Levelling Pedestals CAD Drawings

    • 97-147mm BALANCE EXTRA adjustable pedestal
    • 137-227mm BALANCE EXTRA adjustable pedestal
    • 222-392mm BALANCE EXTRA adjustable pedestal
