4 Hooks Hidden Fixing
For mechanical fixing to aluminium or composite joists
Key advantages.
- Class A fixing – no plastic
- Hidden fixing – concealed, uniform spacing
- Suitable for centrally milled side profile deckboards
- For use with self-tapping screws
- Easy to fix – 2 screw points
- Full Class A system when fitting non-combustible decking
- Full Class B system when fitting thermo bamboo

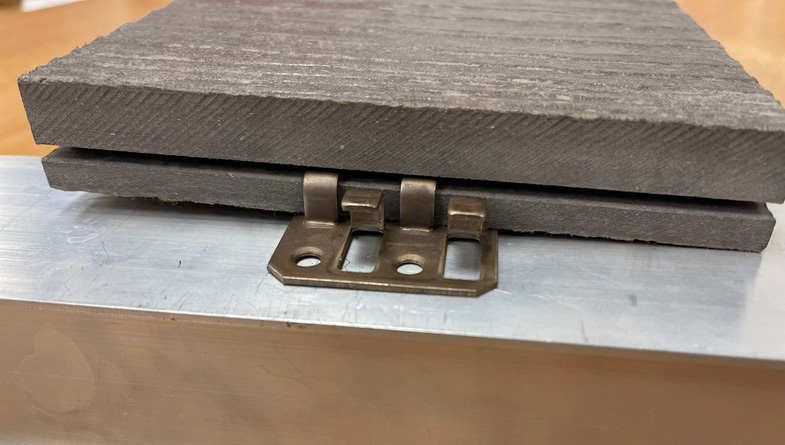

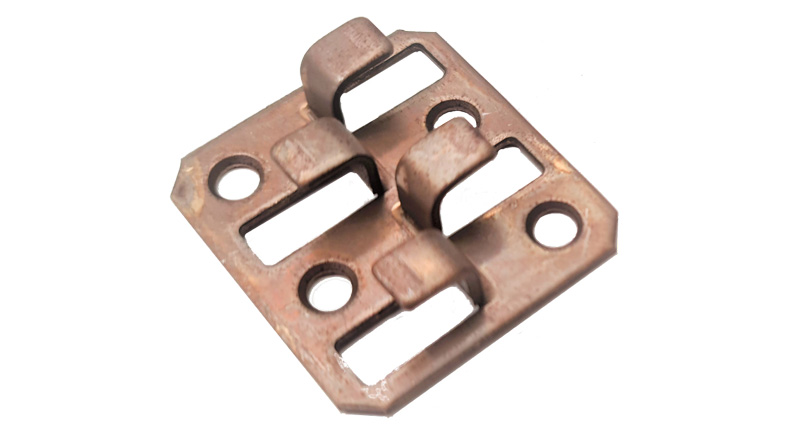

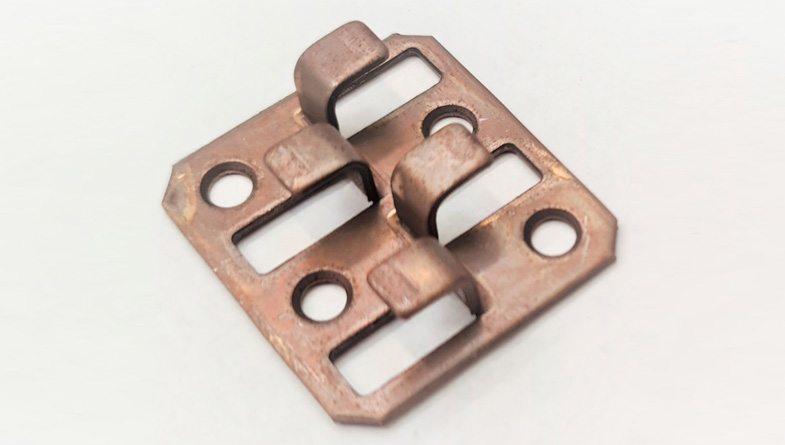

The 4 Hook Clip is made from 1.5mm thick burnished steel plate designed to act as hidden fixings for Wallbarn decking boards that have a central milled profile.

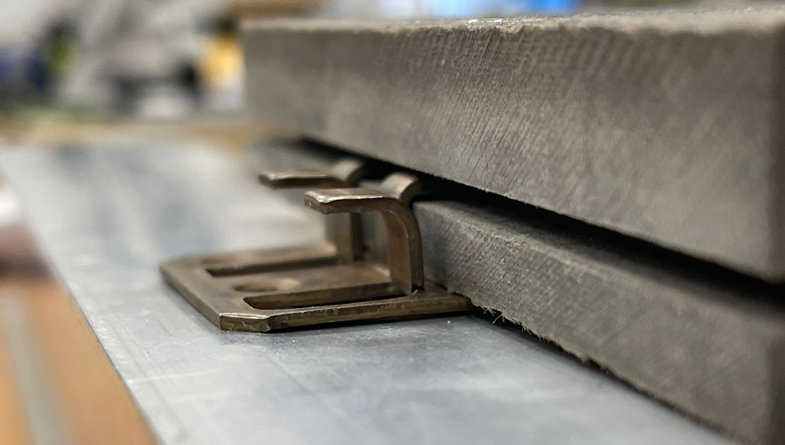

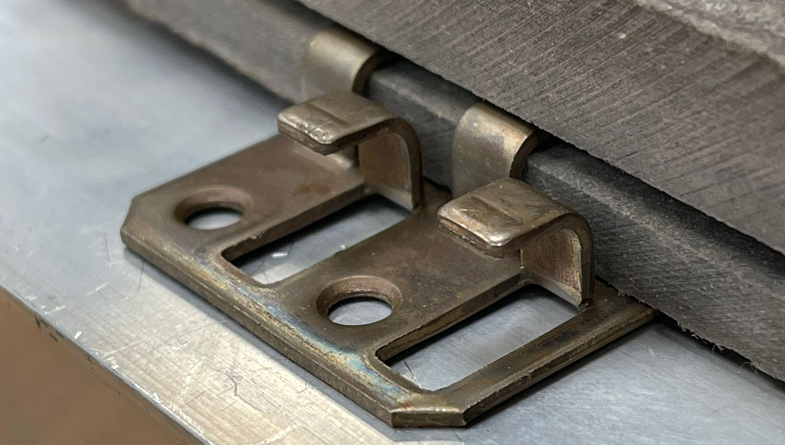

Will fit boards manufactured with a standard side milling profile, the teeth of the clips grip into the grooves at the sides to hold deck boards in place securely without need for top screws or any visible fixings.

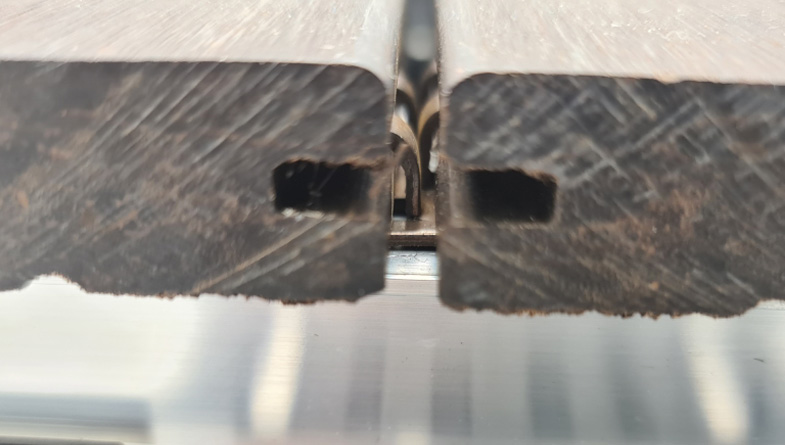

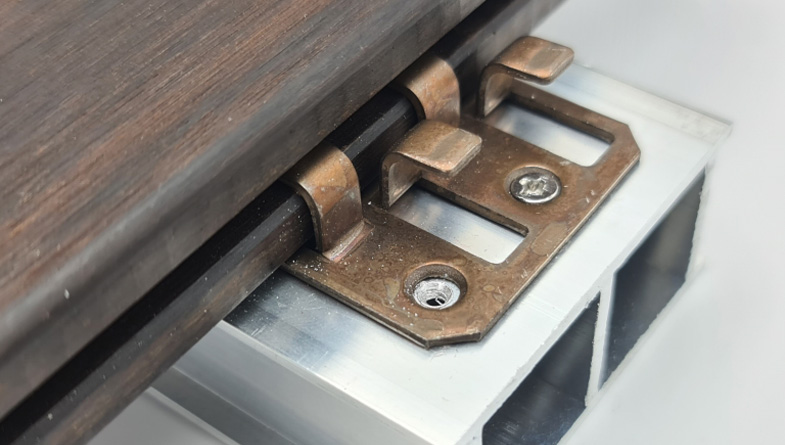

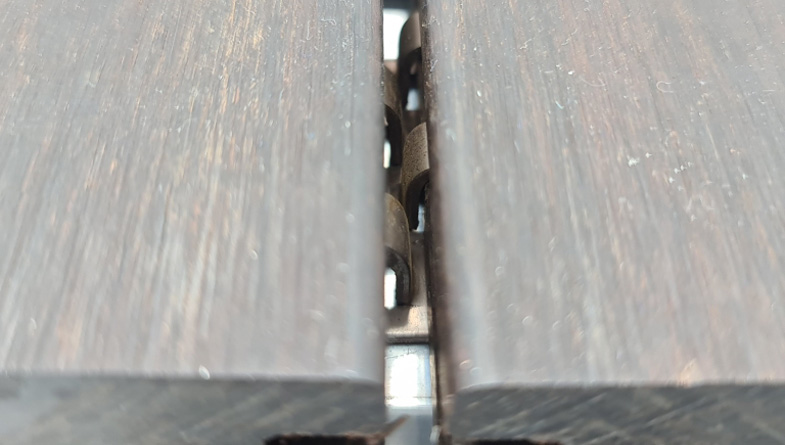

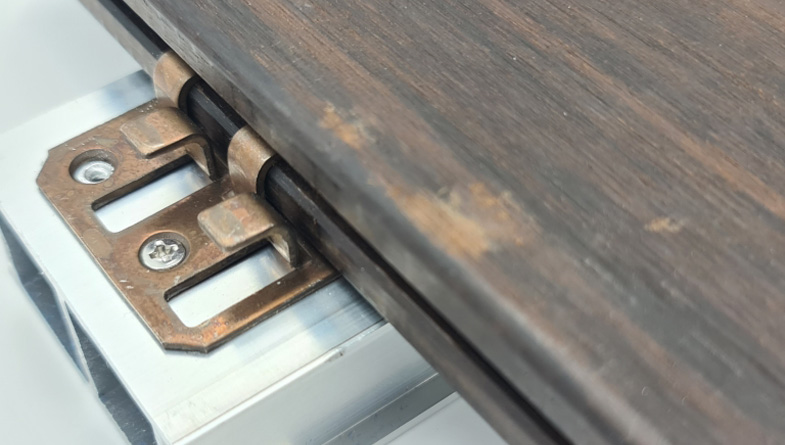

The hooks will provide an approximate 6mm gap between each deck board to ensure uniform spacing. These are secured with Wallbarn’s self-tapping stainless steel screw for Wallbarn Aluminium rails/joists or applicable screws for WPC/composite and timber joists.
A Start/End clip “2 Hooks” is also used to secure the first and last board. This 2 Hook Clip is only available in stainless steel.
4 Hooks are compatible with the following connection types:
Aluminium Joists
Our aluminium joists mimics the build of traditional timber substructure but with many key advantages.
- Can achieve ultra low height thresholds. As little as 55mm total buildup depending on board choice.
- Will not rot, warp or bend like timber joists.
- 100% recyclable Material
- Aluminium will not expand and contract like timber joists
- Lightweight and easy to work with Material.
- We have a special headpiece on our pedestals to accommodate the aluminium joists
- Depending on board choice, we have a number of hidden fixings available – i-Fly, 4 Hook, Remo
Composite Joists
Our composite joists are sturdy and ideal for use with almost any board on the market.
