Call 020 8916 2222TPE Corner / Parapet / Through Wall Outlets With Perforated Flange
Showing 1 - 8 out of 8
Page 1 out of 1
| Product Code | A | B | C | D | E | F | G | Quantity | |
|---|---|---|---|---|---|---|---|---|---|
|
RO-TPE-030-360-500-050-Z
L500mm-D50mm |
|
|
|||||||
|
RO-TPE-030-360-500-063-Z
L500mm-D63mm |
|
|
|||||||
|
RO-TPE-030-360-500-075-Z
L500mm-D75mm |
|
|
|||||||
|
RO-TPE-030-360-500-080-Z
L500mm-D80mm |
|
|
|||||||
|
RO-TPE-030-360-500-090-Z
L500mm-D90mm |
|
|
|||||||
|
RO-TPE-030-360-500-100-Z
L500mm-D100mm |
|
|
|||||||
|
RO-TPE-030-360-500-110-Z
L500mm-D110mm |
|
|
|||||||
|
RO-TPE-030-360-500-125-Z
L500mm-D125mm |
|
|

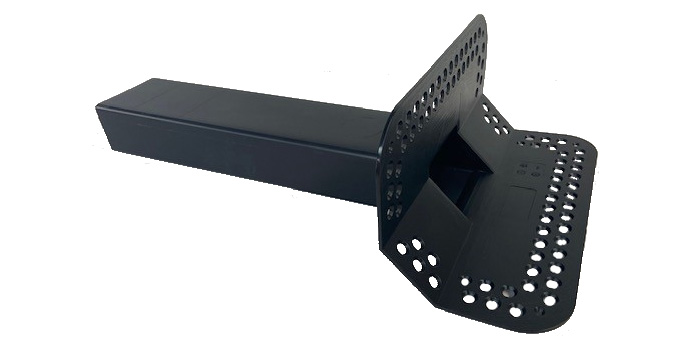

TPE corner / parapet / through wall outlet fittings ** 45° Angle
TPE through wall or corner fittings made are used to connect bituminous waterproof roofing felt to rain water drains placed close to walls through bends for form a long term seal. They have a perforated flange with holes to help with heat bonding or sandwiching between layers of waterproofing membrane. The sides of the flange are angled to create a fillet to improve drainage.
They are available in two versions either with a 65×100 mm rectangular section or with a 100×100 mm square section. Always prime outlet and membrane before installation.
TPE corner / parapet / through wall outlet fittings ** 90° Angle
These TPE corner fittings have a rectangular shaped spigot and a perforated flange for bonding to bituminous and liquid membranes. Manufactured with either a right-angled or 45° angled face to fit the mouth of the drainage outlet.
A is the height of the outlet drainage hole
B is the width of the outlet drainage hole
C is the length of the shank or outlet pipe
D is the width of the border flap or flange around the underside of the outlet hole
E is the height of the border flap or flange to the left and right, and above the outlet hole
F is the width of the flange
