Installation of TD Megapads, Marine Wharf in Surrey Quays

A recent project at Marine Wharf in Surrey Quays offered the perfect example of just how fast and effective the installation of TD Megapads can be.

Project Specifications

The specifications for this project were supplied from the architect using the AUTOCAD images we have on our website and the information we publish on the NBS Plus software provided by RIBA.

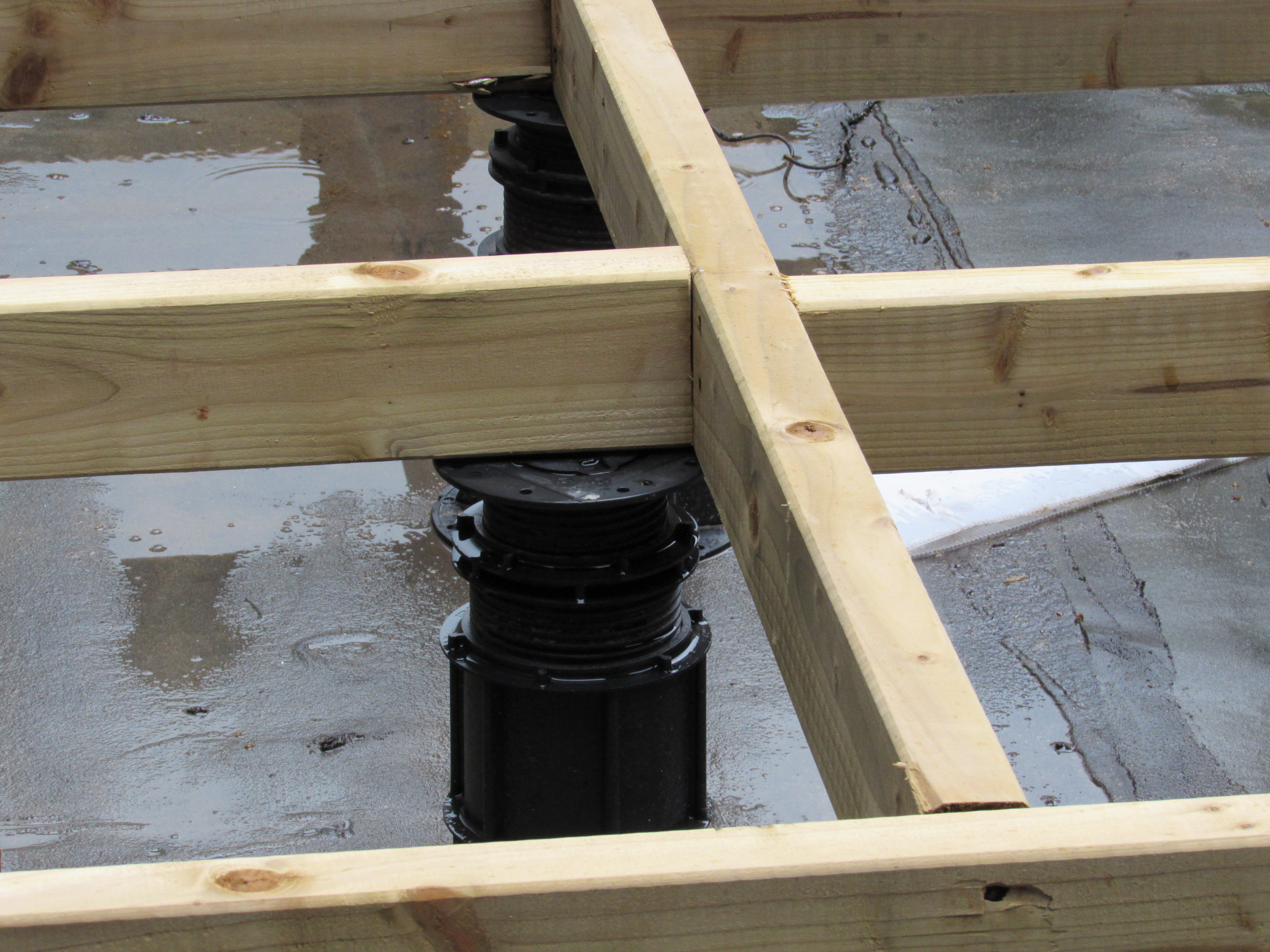

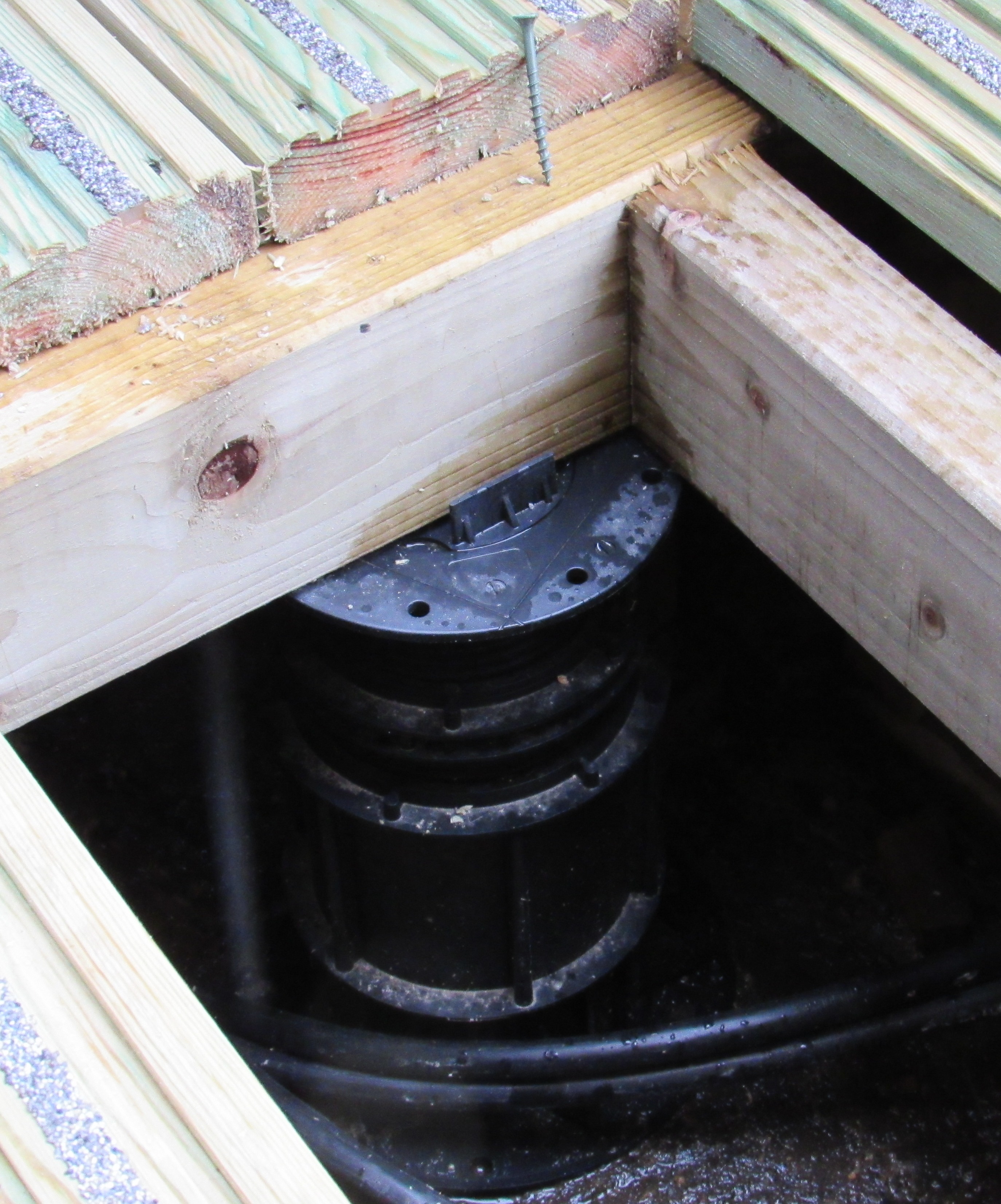

For successful completion of the project, it became apparent that a product capable of holding very high weights, which the Megapads do (800kg per unit), was required to reach up to the door thresholds of the residential units.

The high clearances mean none of the timber is left in standing water. As this deck is treated softwood, if it was left in standing water permanently it would rot much faster, this design extends the life of the timber.

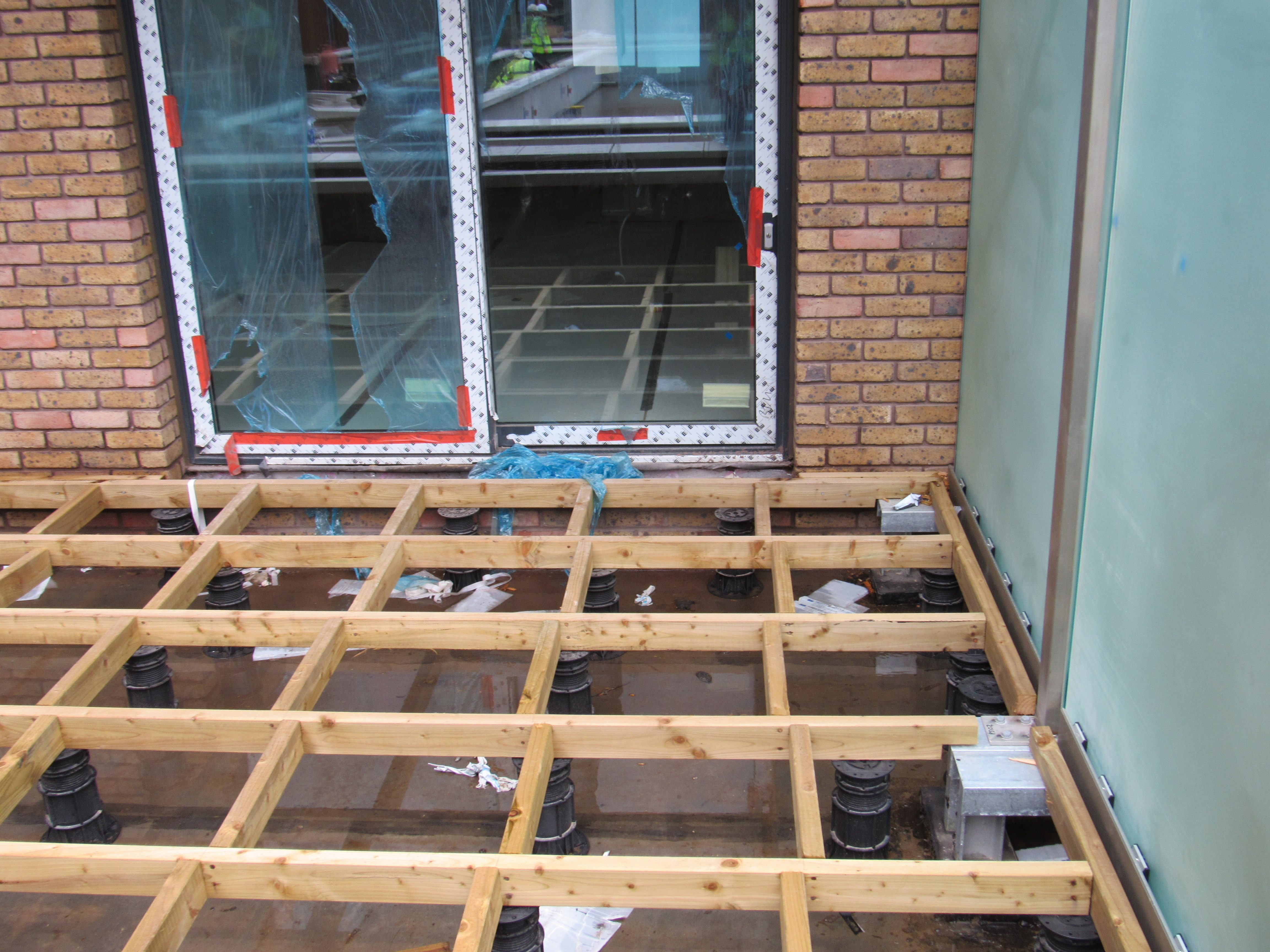

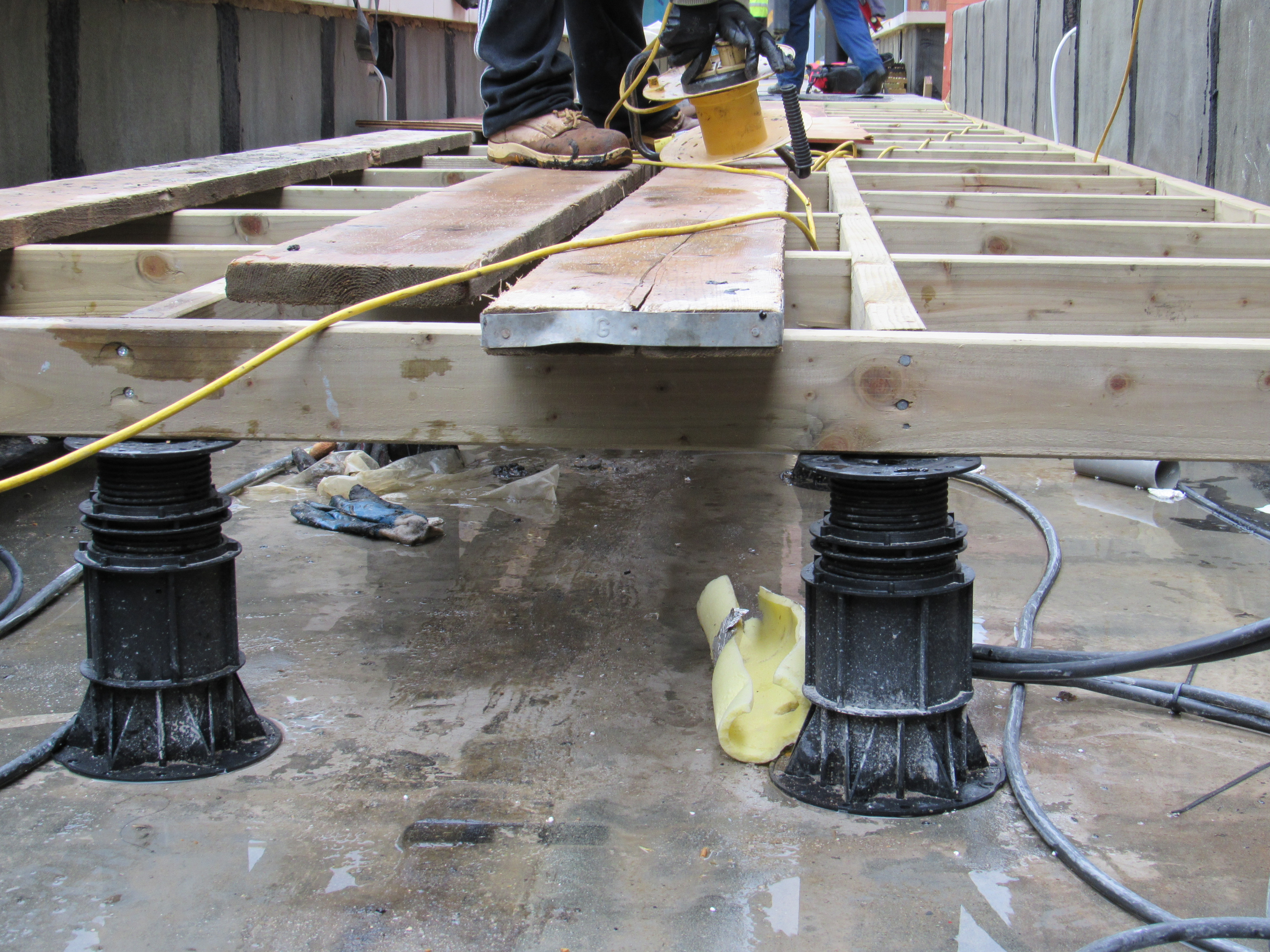

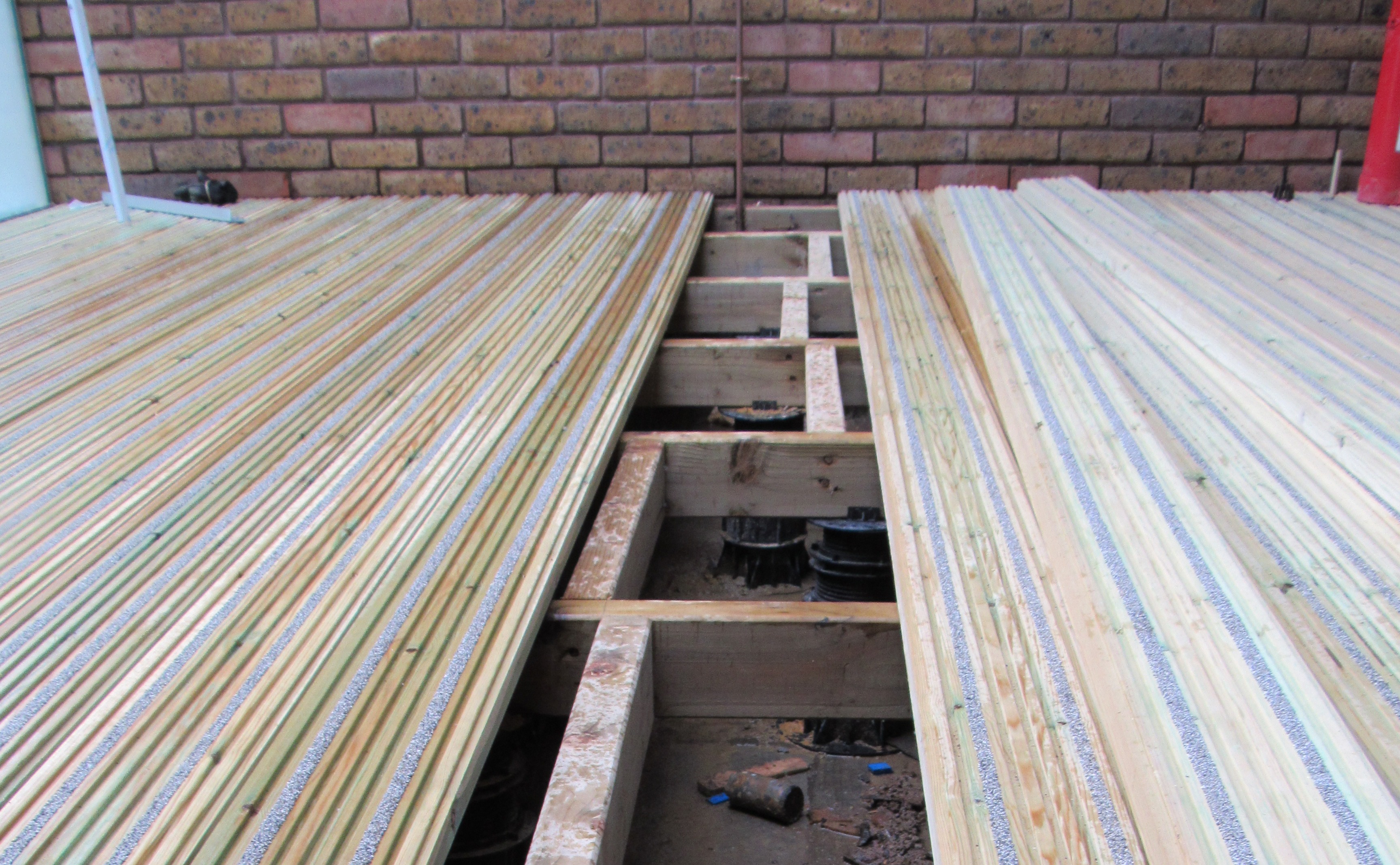

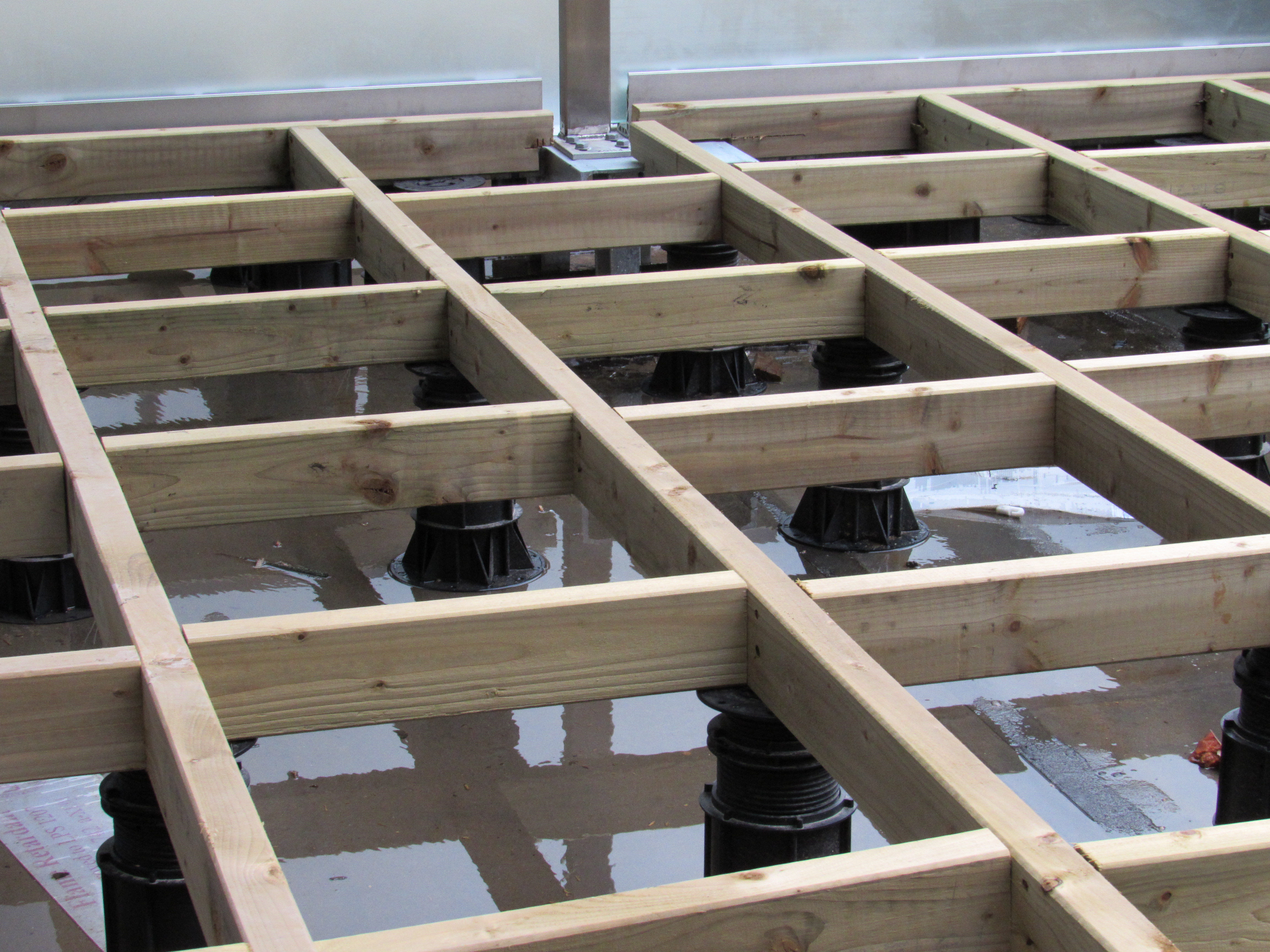

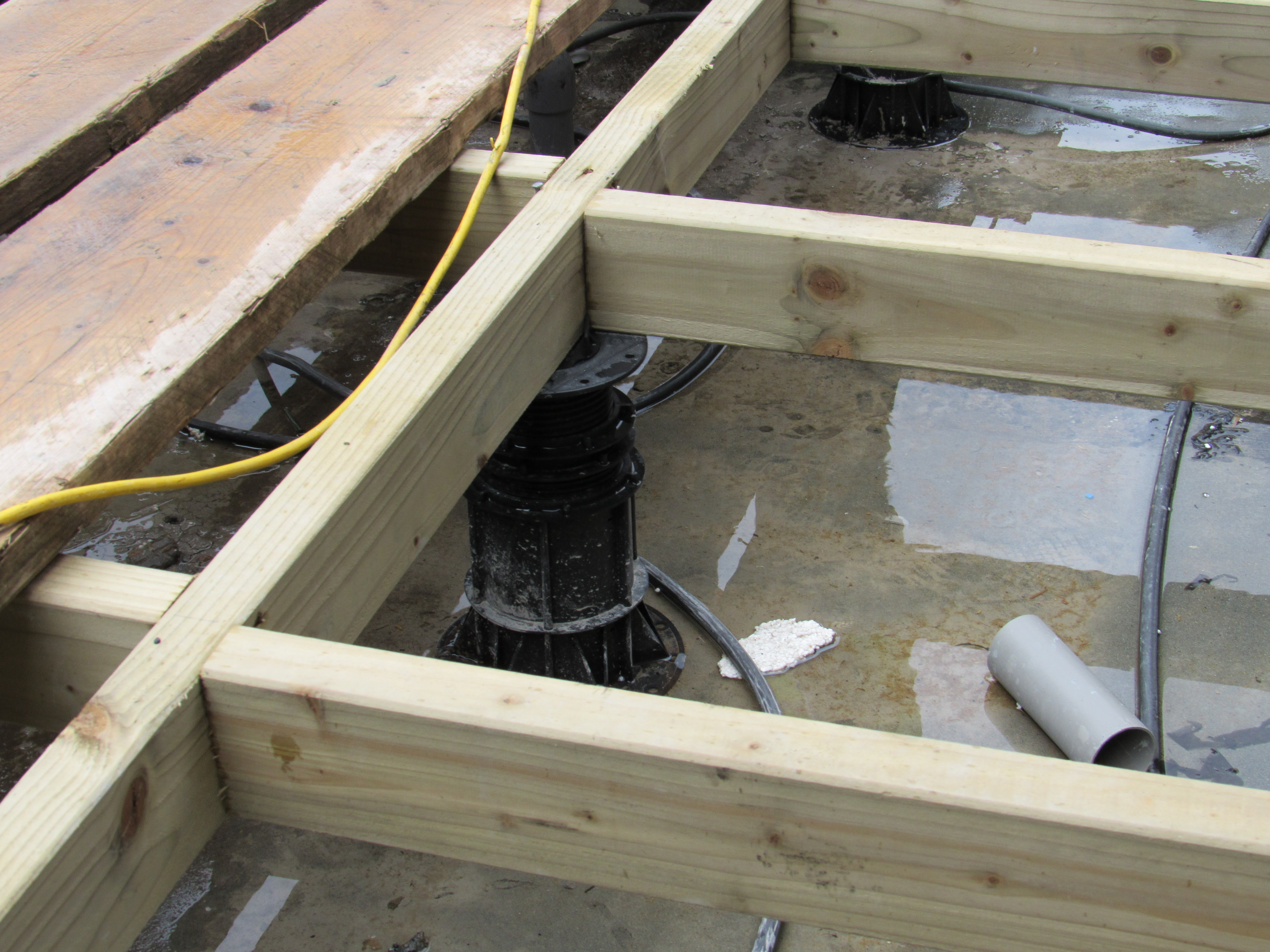

The timber decking was laid out onto the concreted and waterproofed areas so that everything, the terraces and the walkways around the central fountain landscaping area, was on the same level.

Significantly Reduced Installation Time

The installation team from Elite Landscapes, stated that they were able to install this decking 5 times faster than with the method they were trying previously.

For more on TD Megapads, including technical data, please click here.
