Accessories

Slope Correctors

Designed to click under baseplates of adjustable pedestals.

Key Advantages

Available with 1%, 2% & 3% falls
Secure clip & hook fitting to baseplates
Arrest rocking of slabs and tiles
Multiple correctors can be fitted together
For use with Minipad, Universal, Balance & Mega Balance pedestals

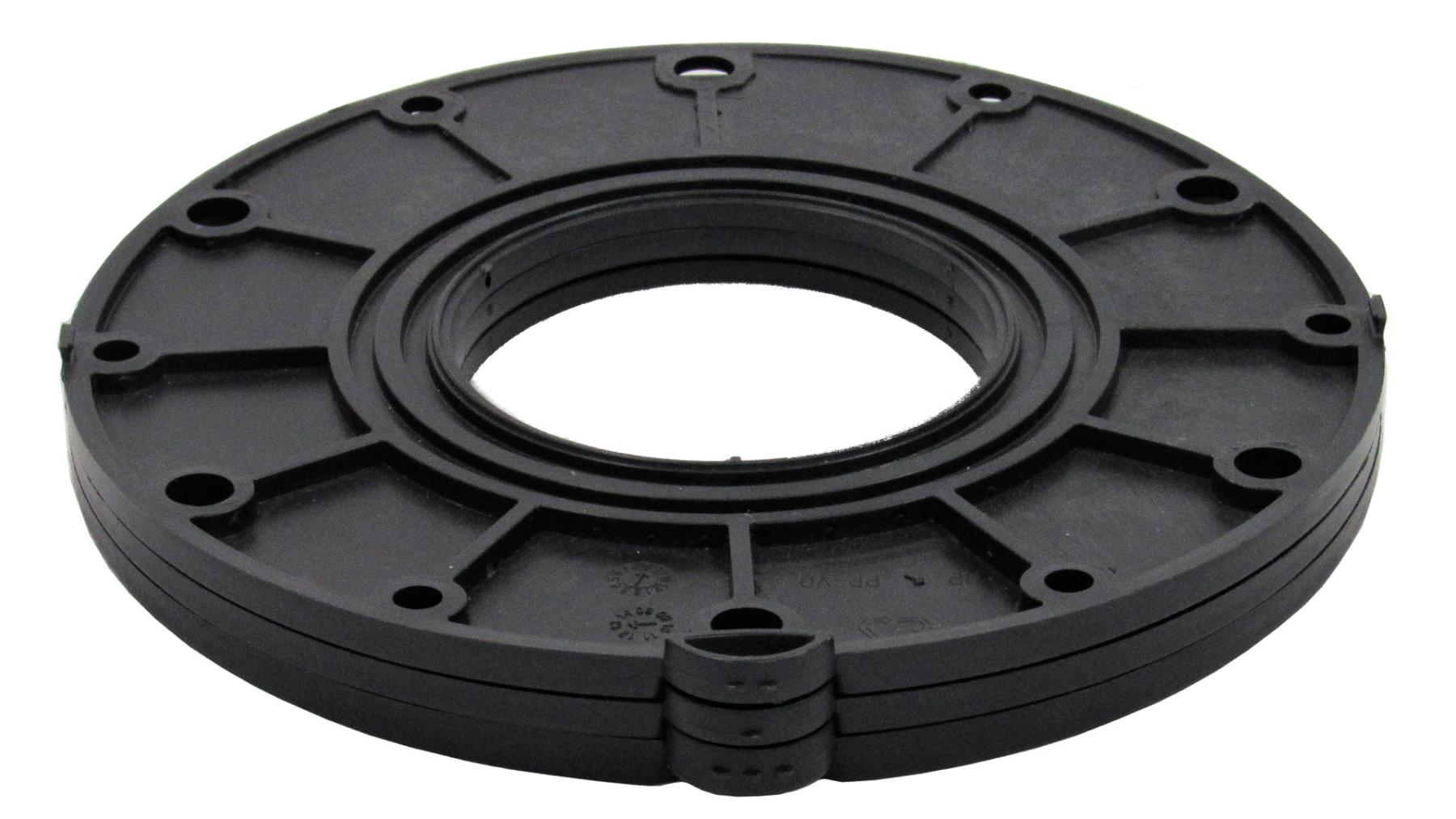

2=slope-correctors-1%,-2%-and-3%-stacked-togetehr,-side-view

Available with 1%, 2% & 3% falls

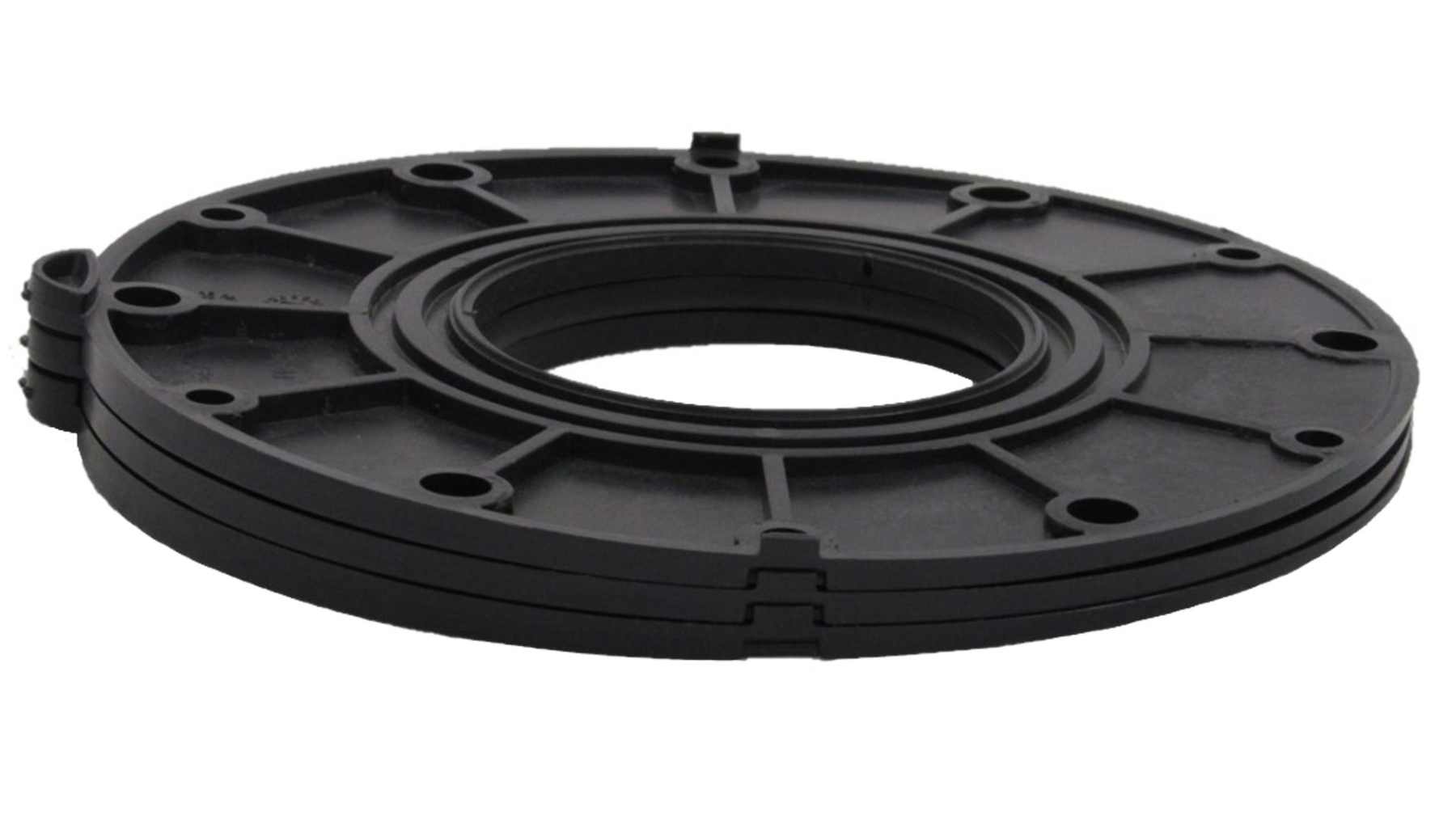

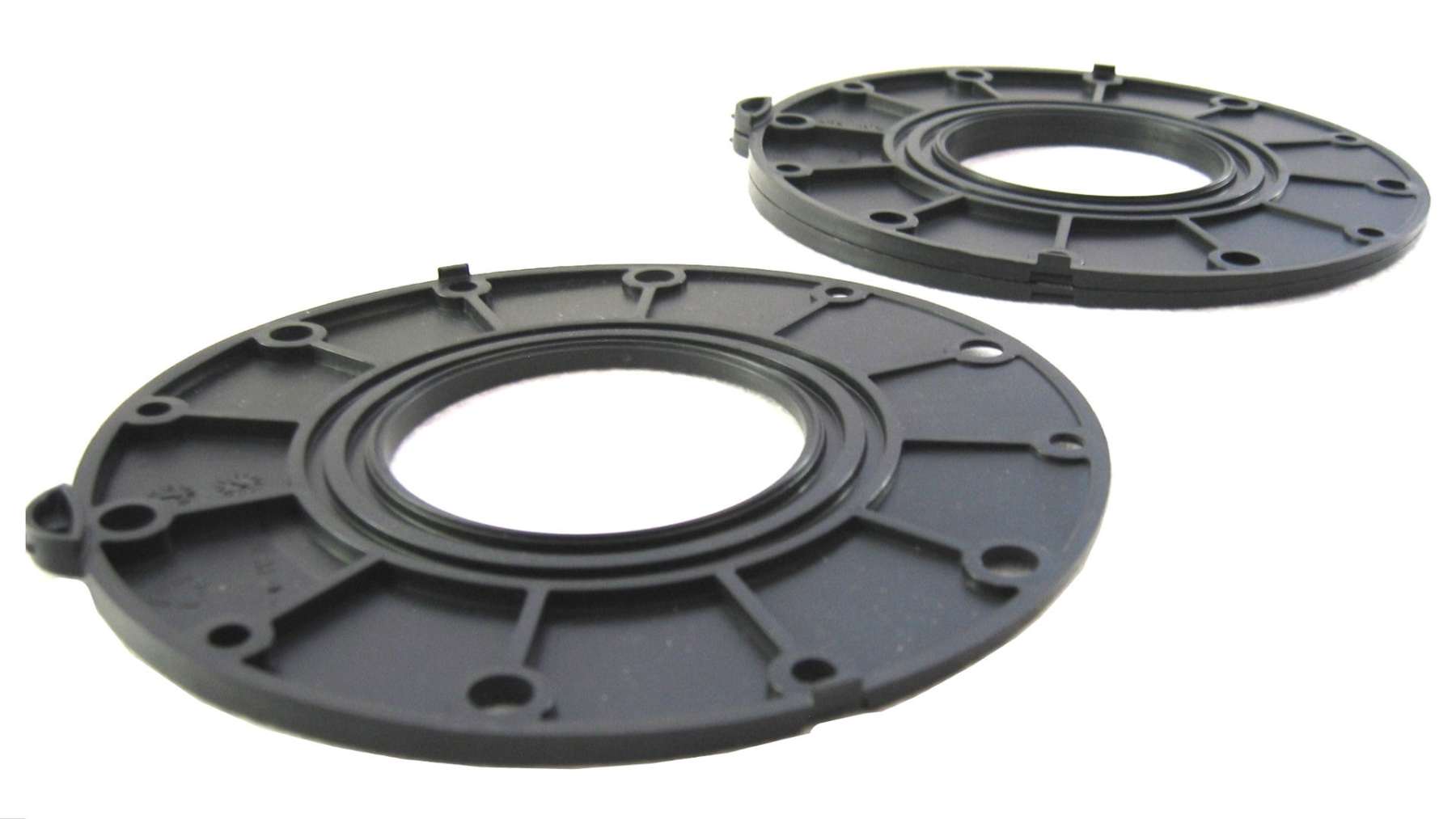

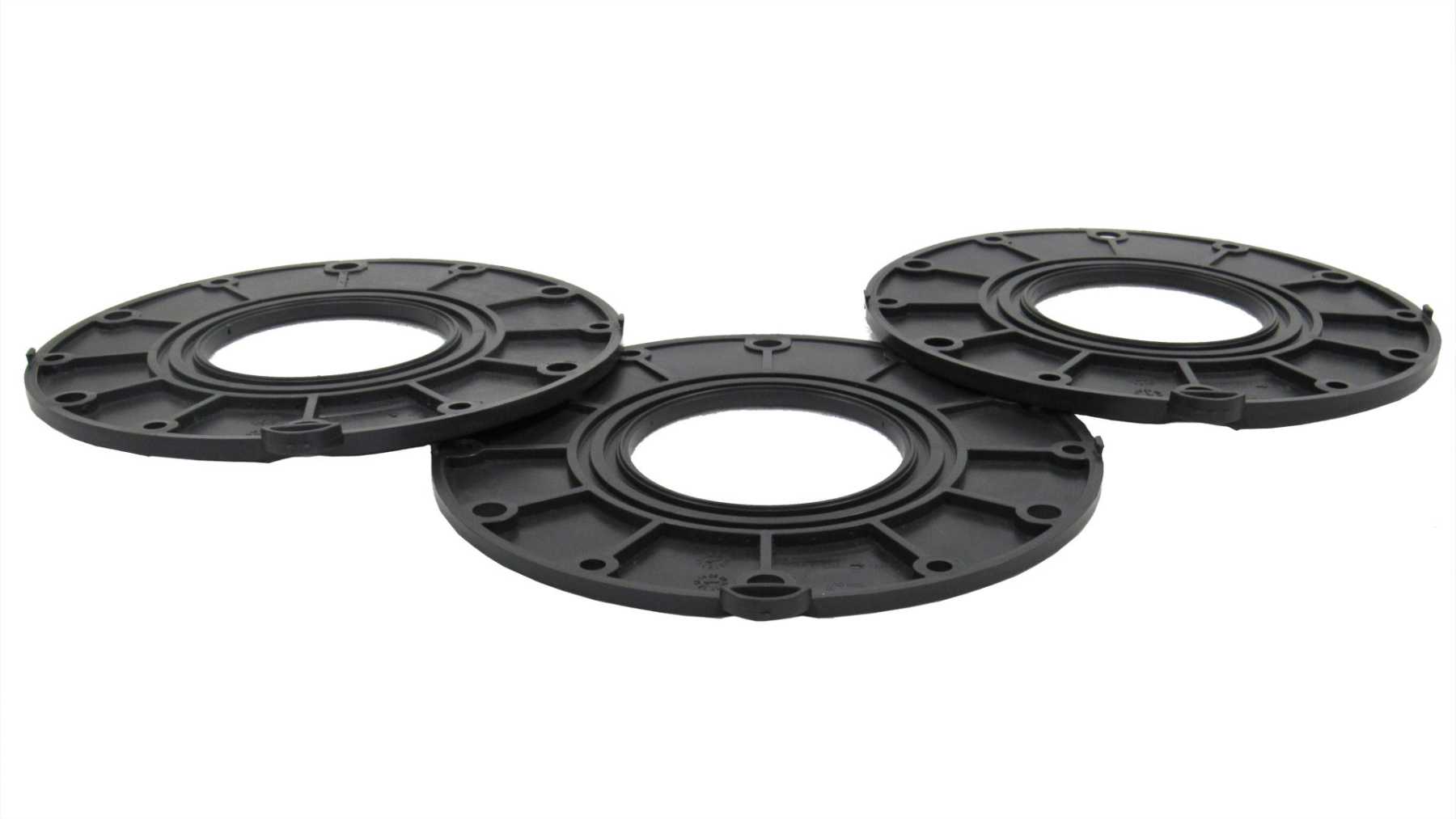

Slope Correctors are circular wedge-shaped discs which are designed to clip under the baseplates of adjustable support pads to arrest the fall in the roof deck. They are lightweight and easy to apply as they are secured to the baseplate by two clips at the side which hook over the edge of the baseplate to hold them both secure.

This slope corrector is a superior design as they adjust the fall under the base, meaning that the support pad is always completely straight and the force down is always completely vertical. The weight of the slab is always going directly downwards and is far more secure.

Ridges running around the inner ring of the slope corrector will secure to the underside of the smaller baseplate so the system remains stable.

They are packed into boxes of 20 units each.
