Drainage
Protecto-Drain Accessories
We have a range of accessories to compliment our drainage products:
- Cover Profile
- Fixing Studs
- Butyl Fixing Tape

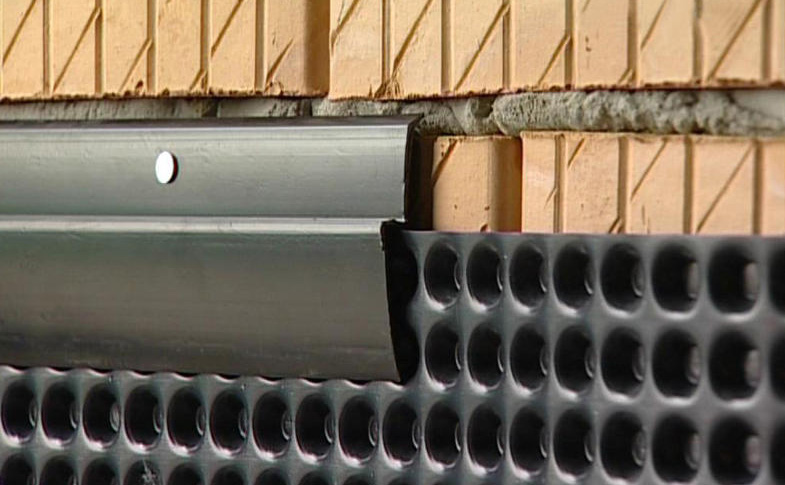

Cover Profile
A Cover Profile is used as the top finishing element on dimpled and drainage membranes.
It reliably prevents stones and soil from falling behind the dimpled sheet. The profile is equipped with pre-punched holes, so that it can be securely fastened to the masonry. The plastic profile can be used in a non-visible area.

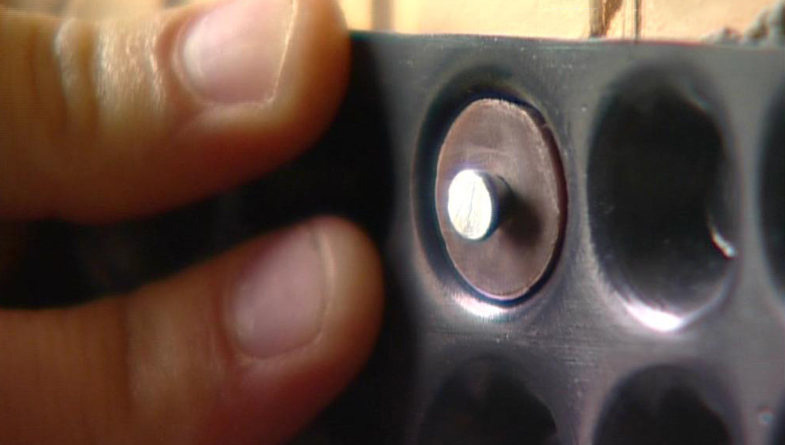

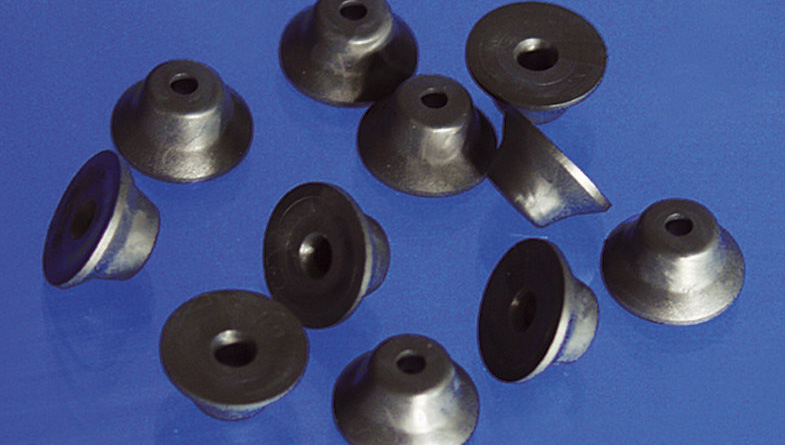

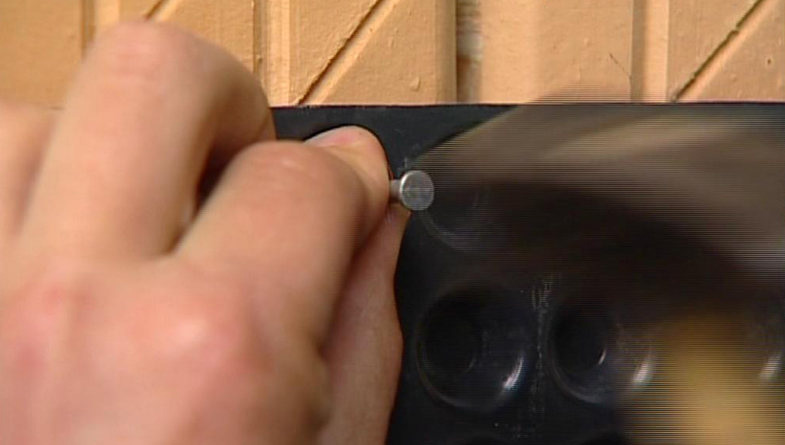

Fixing Studs
The steel fixing studs and mounting knobs can be used to efficiently install dimpled sheets and fasten them to concrete and masonry. The mounting knobs prevent the dimpled sheets from tearing the membrane and help to seal the fixing hole.

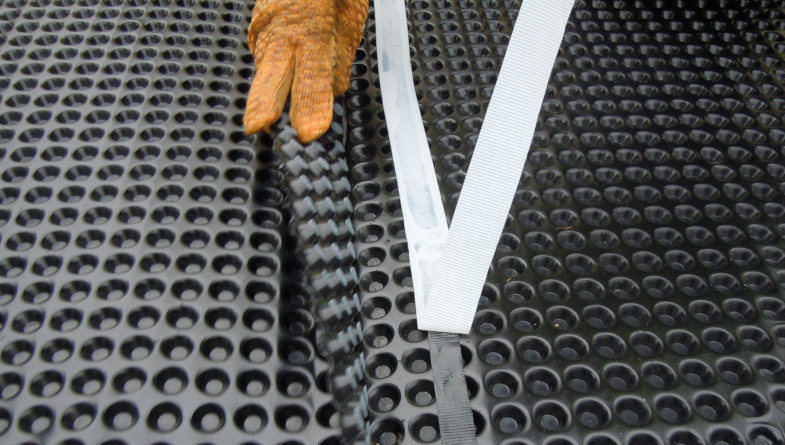

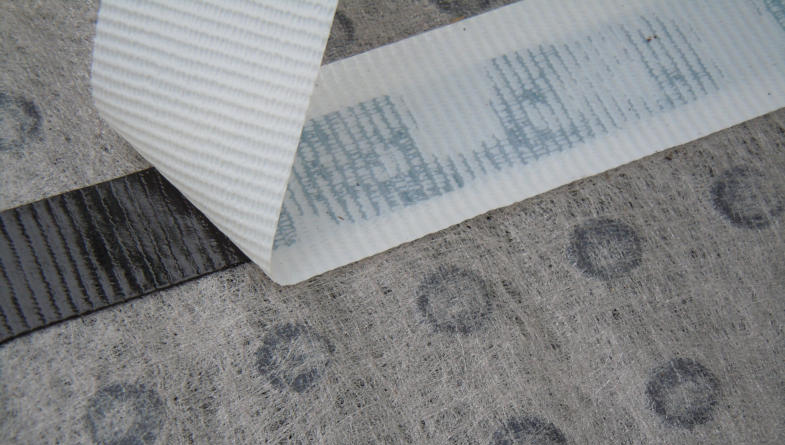

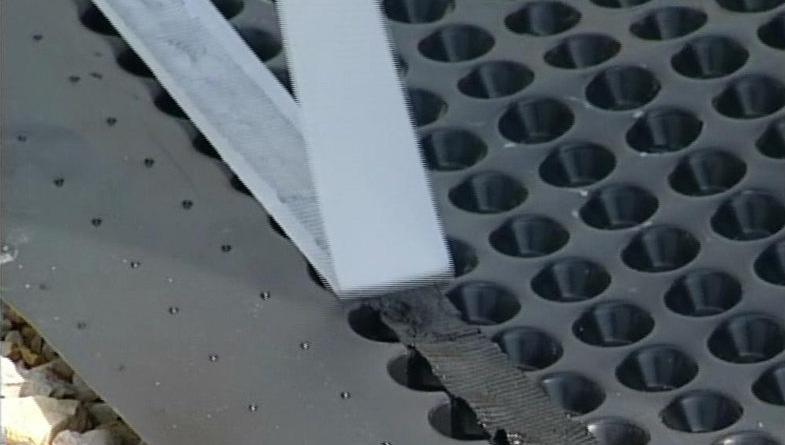

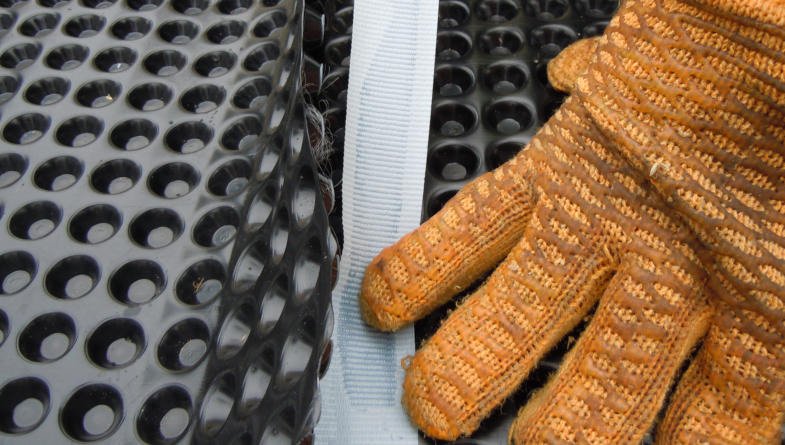

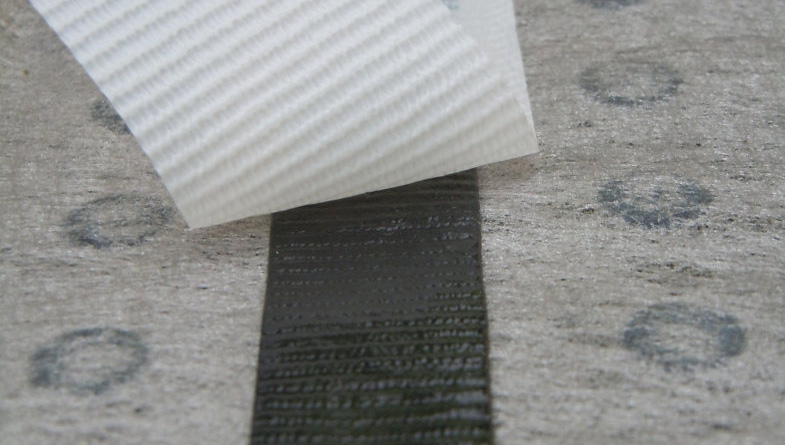

Butyl Fixing Tape
High bonding force on both sides, waterproof, self-seal- ing plastic-elastic butyl rubber mass which is 0.6 mm thick. It has good cohesion and strength and very high resistance to ageing. The Protecto-drain Butyl Fixing Tape is permanently water-resistant. Wind and vapour barriers, underlay sheet in the roof and façade areas, dimpled and drainagemembranes and masonry barriers can be sealed and bonded reliably using the product.Ideal for connecting the underlay membrane to rising building components or connecting an LDPE VAPOUR BARRIER.
BIM Library

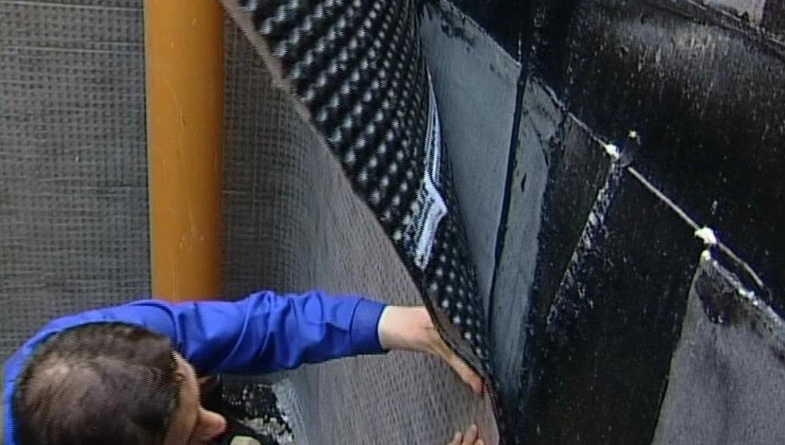

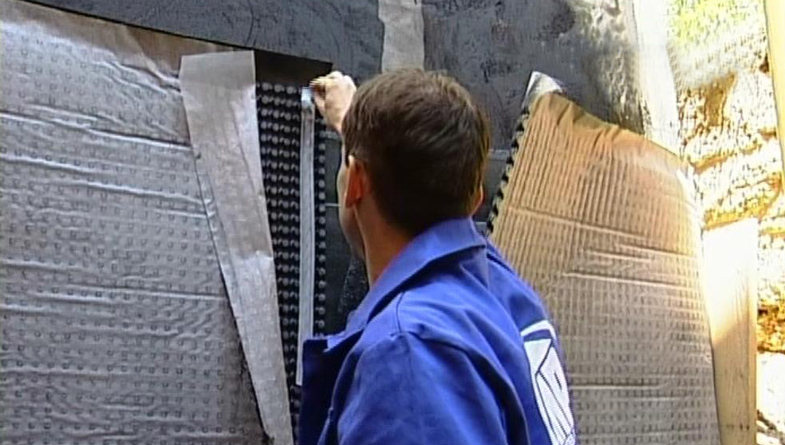

Used as a mechanical protection against soil and root movement along foundation walls. It can be installed with a 20cm overlap and fixed with nails and sealing buttons 5 cm from the top edges of the roll and 20cm from each roll. Edging profile is installed to prevent soil ingress into the cavity. Maximum build-up 8 metres high.

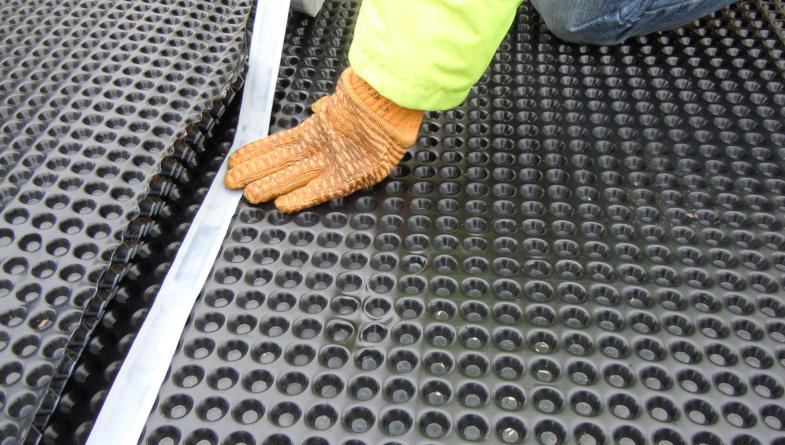

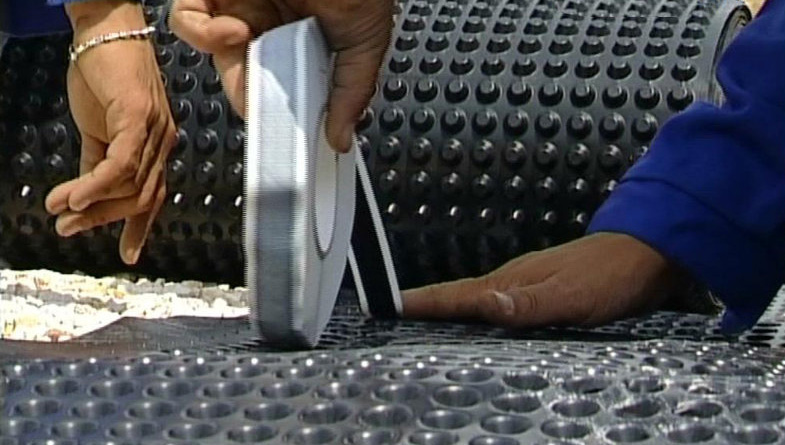

Laid horizontally and fixed using sealing tape in the overlapping areas the sheets protect concrete flooring form rising damp and keep reinforcement mesh in place firmly during the concrete works.
