What Are Non-Combustible Pedestals?

Non-combustible pedestals for high rise balconies, terraces, flat roofs and podiums from Wallbarn have been developed to comply with recent fire safety regulations.

Based upon our ASP (Adjustable Support Pedestal, now known as the Universal pedestal) which is designed to help distribute weight effectively, we have developed a steel adjustable pedestal which will be a Class A1 product.

Offering a similar base to our universal pedestal, we will provide different headpieces for both deckings and paving to ensure maximum versatility.

Key Features

• Developed from scratch to ensure a bespoke product which is fit for purpose
• Class A1 product
• Galvanised steel (ensuring extreme temperature tolerance)
• Telescopically adjustable
• Different headpieces available to ensure suitability for both decking and paving installation
• Similar, circular base to our universal pedestals for satisfactory weight distribution

Using galvanised steel to ensure extreme temperature tolerance, we have developed this bespoke product from scratch. We have designed the pedestal ourselves, using our many years’ experience in the paving and decking market and produced a series of prototypes which we have tested extensively; finally coming up with a product which we think meets the requirements of the new safety regulations completely.

MetalPad is made from 100% galvanised steel with zero plastic or rubber elements. It is classified as Class A1 under standard BS EN 13501-1 and meets the requirements of Draft BS 8579 fully an unequivocally.

• No plastic headpieces.
• No rubber discs under bases.

Heights range from 30mm to 258mm with bespoke headpiece designs for either paving slabs or decking, using Wallbarn’s rail connection system.

Key Benefits:

• Made from 2mm thick galvanised steel
• Hot-dip galvanisation for long-term exterior applications – completely rust-proof
• Solid, not hollow, thread for additional strength and load-bearing
• 150mm diameter base plate with smooth underside prevents point loading
• Over 1,000kg loading per pedestal
• Circular base plate ensures adequate weight distribution and proper stability
• Rounded profiles on baseplate and headpiece – no sharp edges
• Drainage holes in baseplate prevent water stagnation and rusting
• Fixing holes in the baseplate for mechanical fixing if required
• Millimetre-precise height adjustment
• Height can be altered using an adjustable spanner with slabs or decking in position
• Limit switch on the stem to prevent the pedestals unwinding completely

Designed specifically for exterior applications, not adapted from other applications.

For paving:

• The circular headpiece is lugged for paving slabs and ceramic tiles
• Ideal for porcelain tiles
• 120mm diameter headpiece gives greater service area to support tile
• Large baseplate gives lateral stability meaning less risk of tiles rocking

For Decking:

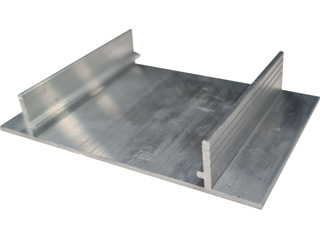

• Specially designed click-deck headpiece made from stainless steel, designed to hold Wallbarn’s own ledged-profile aluminium joist.
• The headpiece is coated with RAL 7016 powder-coated paint to prevent reaction between steel and aluminium joist
• Secure fixing between pedestal head and joist means no need for additional mechanical fixings are required
• No drilling means less risk of shrapnel or sharp metal objects
• High weight tolerance and large baseplate mean pedestals can be placed at larger distances apart
• This means fewer units per m²

MetalPad is considered to be Class A (‘No contribution to fire’) under the ruling of EU Commission Decision 94/611 /EC.

Classified non-combustible to BS EN 13501-1 (Fire classification of construction products & building elements)

• Complies fully with draft British Standard BS 8579
• This product has been developed to ensure compliance with:
• Amendment to Approved Document B May 2020
• Approved Document B 2019

Advice Note on Balconies in Residential Buildings published by Department of Housing, Communities & Local Government (MHCLG) issued on 24 June 2019

Regulation 38 of the Fire Safety Building Regulations published by the Government

PROPERTIES

• Recycled content (%)          0
• Reusable                                Yes
• Availability                             <1 week

MATERIALS

• Electro-galvanised Steel
• The thickness of material: 2mm
• Reaction to fire: Class A1 EN 13501-1
• BS 8579 (balcony construction)
• Finishes: RAL 7016 powder-coated paint (decking version)

ZERO PLASTIC CONTENT

ZERO RUBBER CONTENT

• Colours: Steel

OTHER GUARANTEES

• Guarantee to weight: Weight tolerance 1 tonne
• Maximum weight load: 2 tonnes (dynamometer)
• temperature tolerance
• Heat tolerance: 465°C
• Cold tolerance: -50°C

CHARACTERISTICS

BASEPLATE

• Baseplate diameter: 150mm
• Baseplate features: Circular baseplate
• 8 x drilled drainage holes 5mm diameter
• 4 x drilled fixing holes 8mm diameter

STEM

• Stem type: Solid threaded stem
• Stem diameter: 16mm

PAVING HEADPIECE

• Headpiece diameter: 120mm
• Lug thickness: 2mm
• Lug height: 10mm

DECKING HEADPIECE

• Click-deck headpiece material: Stainless Steel
• Distance between lugs: 60mm
• Connection type: Clip fastening to bespoke Wallbarn aluminium rail
• Headpiece Coating: Coated with RAL 7016 powder-coated paint

HEIGHT RANGE

• 30-38mm
• 38-46mm
• 46-55mm
• 53-67mm *
• 65-87mm *
• 85-115mm *
• 113-162mm *
• 160-258mm *

*Integrated limit switch on the stem to avoid separation of the stem from the headpiece

WARRANTY

Limited warranty (see Terms & Conditions of Supply) based on products being used for purposes stated by Wallbarn up to the amount of the invoice total.

• Warranty: 15 years
• Life span: 50 years

NBS clauses           J21 85 467 J31 80 370 375 377 J41 90 467 J42 467 Q37 460 Q55 110 395 45-70-45 330 J21 470 J31 375 377 J41 470 Q50 25 Q55 380 45-45-95 315

BIM

CAD        https://www.wallbarn.com/fire-rated/class-a-fire-rated-pedestals#specification
